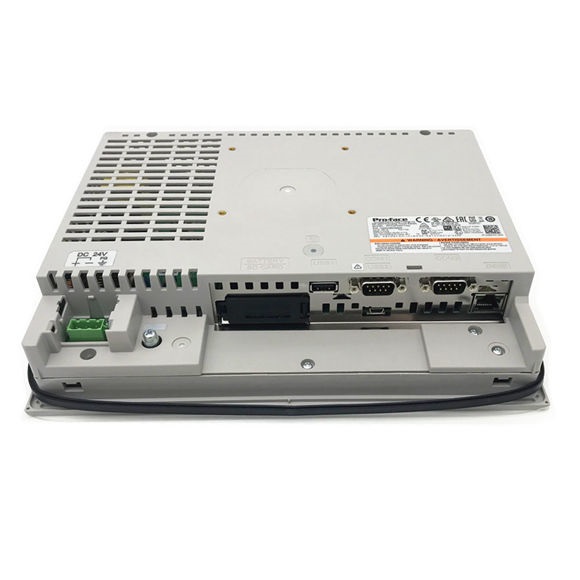

HMI Proface Model PFXGP4601TMD

HMI Proface Model PFXGP4601TMD

Feature

  • High Definition LCD
  • USB Type A/mini B
  • Matrix Touch Panel
  • SC Card
  • Serialx2
  • Alarm Analysis Function
  • Ethernet
  • TFT Color LCD (65.536 colors)
  • Display Resolution SVGA

Functional Specifications

Display TypeTFT Color LCD
Display Size12.1″
Resolution800 x 600 pixels (SVGA)
Effective Display AreaW246.0 x H184.5 mm [W9.69 x H7.26 in.]
Display Colors65,536 Colors (No blink)/16,384 Colors (Blink)
BacklightWhite LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control16 Levels (Adjusted with the touch panel or the software)
Backlight Service Life50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language FontsJapanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character SizesStandard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font SizesStandard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
Text8 x 8 dots100 char. x 75 rows
8 x 16 dots100 char. x 37 rows
16 x 16 dots50 char. x 37 rows
32 x 32 dots25 char. x 18 rows
Control MemoryVariable AreaSRAM 64 KB (Replaceable Lithium battery for backup memory)
Logic Program AreaPer 1 rotation servo motor, encoder resolution: 262144 p/rev
Command pulse ratioFLASH EPROM 132 KB (Equivalent to 15,000 steps)
Application MemoryFLASH EPROM 32 MB (including a logic program area)
Data BackupSRAM 320 KB (Replaceable Lithium battery for backup memory)
Clock Accuracy±65 sec/month (deviation at room temperature and power is OFF)
Touch Panel TypeResistive Film (analog)
Touch Panel Resolution1,024 x 1,024
Touch Panel Service Life1,000,000 times or more
InterfaceSerial (COM1)RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
Ethernet (LAN)IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B)Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD CardSD Card Slot x 1

General Specifications

Rated Input VoltageDC 24 V
Input Voltage LimitsDC 19.2 to 28.8 V
Allowable Voltage Drop10 ms or less
Power Consumption17 W or less
In-Rush Current30 A or less
Voltage EnduranceAC 1,000 V 20 mA for 1 min (between charging and FG terminals)
Insulation ResistanceDC 500 V, 10 MΩ or more (between charging and FG terminals)
Surrounding Air Temperature0 to 55 °C [32 to 131 °F]
Storage Temperature-20 to 60 °C [-4 to 140 °F]
Ambient Humidity10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less – no condensation.)
Storage Humidity10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] or less – no condensation.)
Dust0.1 mg/m³ (10-7 oz/ft³) or less (non-conductive levels)
Pollution DegreeFor use in Pollution Degree 2 environment
AtmosphereFree of corrosive gases
Air Pressure (altitude range)800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)
Vibration ResistanceIEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min)
Concussion ResistanceIEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times
Noise Immunity     Noise Voltage: 1,000 Vp-p, Pulse Duration: 1 µs, Rise Time: 1 ns (via noise simulator)
Electrostatic Discharge ImmunityContact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)
GroundingFunctional grounding: Grounding resistance of 100Ω, 2mm² (AWG 14) or thicker wire, or your country’s applicable standard. (Same for FG and SG terminals)
StructureIP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)
Cooling MethodNatural air circulation
Weight Approx.2.5 kg [5.5 lb] or less (display unit only)
External DimensionsW315x H241x D56 mm [W12.4 x H9.49 x D2.2 in.]
Panel Cut DimensionsW301.5 x H227.5 mm [W11.87 x H8.96 in.], Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]
